Wismec Reuleaux RX Mini Kit

Today we will be taking a look at the newest addition to the Wismec Reuleaux family the Reuleaux RX Mini mod and Reux Mini tank that together makes up the RX Mini Kit. The RX Mini is the mini version of its big brothers, offering 80 watts of power, temperature control and 2100 mah built in battery all in a tiny little package.


Specs and Features:

RX Mini Mod:
  • Dimensions: 44.5*33.5*58mm (1.75*1.32*2.28in)
  • Internal 2100mAh Battery
  • Wattage Range: 1W - 80W
  • Temperature Range: 200°F - 600°F / 100°C - 315°C
  • Resistance Range:
  • 0.1Ω - 3.5Ω (VW Mode)
  • 0.05Ω - 1.5Ω (TC Modes)
  • Output Modes: VW, Bypass, Temp Control (Ni, Ti, SS), TCR
  • Maximum Charge Current: 1A
  • Maximum Output Current: 25A
  • OLED Display
  • Spring Loaded 510 Pin
  • Ergonomic Shape
  • Micro USB Port (Upgrading & Charging)
  • Dual Circuit Protection
  • Colors: White, Silver, Black, Grey, Red


Reux Mini Tank Specifications:
  • Dimensions: 46*22mm
  • 2ml Tank Capacity
  • Stainless Steel Construction
  • Convenient Top Fill
  • Wide Bore Delrin Drip Tip
  • Adjustable Airflow

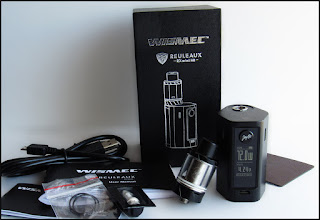

What's in the box?
1*Reuleaux RXmini
1*Reux Mini
2*Triple 0.2ohm Coil
2*Seal Ring
1*Sticker
1*USB Cable
2*User Manual (Reuleaux RXmini & Reux Mini)

Design & Function:

Reualeaux RX Mini Mod:
The RX Mini is a very compact little mod, measuring in at only 44.5mm by 35.5mm by 58mm, it is shorter than the Eleaf  Istick Pico. Despite its small stature, the RX Mini offers a powerful 80 watts and includes all the options that it's big brothers have, including temperature control for NI, TI, SS, TCR mode, Bypass mode and variable wattage mode.
The RX Mini keeps the classic RX design of its big brothers, just on a much smaller scale. The front of the mod features a large fire button with the Jaybo logo on it. Under the fire button you have a nice bright OLED display and under the display you have your micro-USB port for both charging and updating the mod.  On each side of the mod it looks like there is a couple of vent holes and the back of the mod features a leather like textured sticker that gives the RX Mini a nice grip. The sticker is  changeable, you receive one extra sticker in the package, mine was brown, but it looks like there are other colors available.

The top of the mod features the spring loaded 510 connection. You can only fit a 22mm tank on there without over hang.

The bottom of the mod is where your regulatory buttons are. I have to say that I don't really like the buttons. They are recessed and kind of hard and annoying to use without flipping the mod over and using my fingernail to press the buttons. I wish they would have put the buttons on the front of the mod instead of the bottom. There is also vent holes and a reset button of the bottom of the mod.

The RX Mini also features a built-in 2100 mah battery. I found that running the RX Mini at it's maximum of 80w, the battery lasted a few hours before needing to be charged. Not bad for such a little mod. I know for a lot of folks the built in battery is going to be a con, but you can vape the RX Mini while it's charging so that helps keep it from being a con for me. I'm usually at my computer vaping so I can just plug the RX Mini in and keep vaping if needed.

Menu System:
To turn the RX Mini on/off you press the fire button 5 times. To get into the menu, you press the fire button three times quickly and then use the right regulatory button to choose either variable wattage mode, bypass mode, or your various temperature control modes. If you enter the menu and press the left regulatory button it will highlight different settings on the screen you can change.

There are various other settings you can adjust including stealth mode, adding a custom logo and setting TCR modes, that are gone over in detail in the user manual. I don't use temperature control so I didn't mess around with any of the settings. Just going over the manual it looks like the RX Mini has all the bells and whistles temperature control users like.

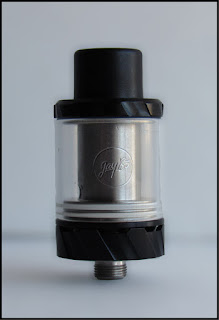

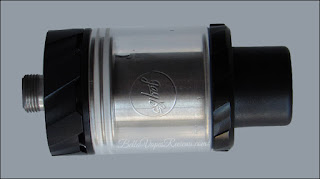

Reux Mini Tank:

The Reux Mini tank is a compact 22mm diameter tank that has a 2ml capacity. The Reux Mini features a wide bore drip tip that is standard 510 sized so you can replace it with your own if you desire. The tank also breaks all the way down for easy cleaning.

The Reux Mini features bottom airflow and is controled by turning the knurled bottom ring on the base of the tank. The draw on this tank is pretty good. It's not an overly airy tank but it does give you good vapor production.

You get two triple 0.2 ohm coils with the kit.  It took a couple of tanks before the coils were broken in but after that it has performed very good. I've been running one for 10 days at 80w and the flavor is outstanding.

The Reux Mini is a top filling tank. You just unscrew the top cap and you have have plenty of room to fill which is nice because you will be filling often.

Final Thoughts:

Overall I really love this kit. Both the tank and the mod go together perfectly. The kit makes a great stealth setup and is perfect for on the go use (if you aren't going to be gone long).  If you are a fan of mini setups or just want something you can stick in a purse or pocket then this is a great setup for you. The RX Mini mod has all of the features the big boys do packed into a tiny package.
